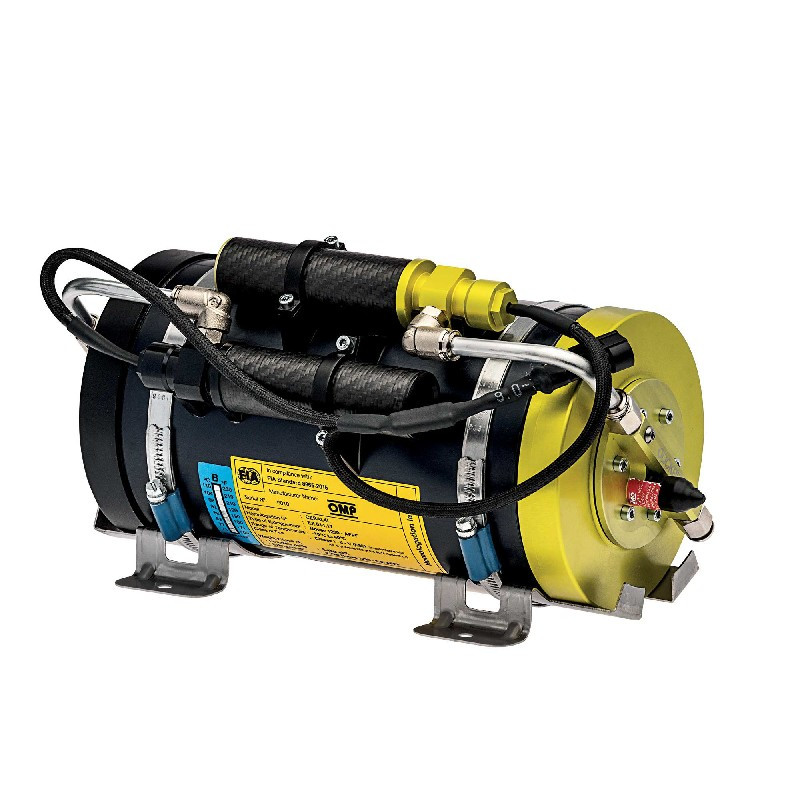

OMP CESAL4 SE AUTOMATIC ELECTRICAL EXTINGUISHING SYSTEM FIA 8865-2015

Compact and lightweight electrically activated fire extinguishing system suitable for passenger cars.
Complies with FIA 8865-2015 regulations.
Aluminium cylinder with electrically activated FK-5-1-12 extinguishing agent.
The system is pressurised when activated, allowing the extinguishing agent to be discharged.
Three nozzles are designed for the engine compartment to protect the most critical and dangerous parts depending on the type of vehicle, and two nozzles are designed for the cabin to ensure front and rear protection for the driver.
Mounting brackets, clamps, tubes and connections are included.


VERSION ‘S’ (CESAL4SE)
Suitable for small spaces (from 1.2 m³ to 2.2 m³)


APPROVED FOR USE IN:
Petrol
Petrol + up to 30% ethanol or methanol (E30)
Petrol + up to 85% ethanol or methanol (E85)
Suitable for electric and hybrid cars



CYLINDER DIMENSIONS AND WEIGHT:

- Diameter: 130 mm

- Length: 274 mm

- Weight: 5.5 kg (cylinder only)

SYSTEM PARTS:

2.5x - 8 mm aluminium tube, 4 m long [CD0-0323-A01]
2.5x - 10 mm sleeve [CD0-0324-A01]
3x - Gas nozzle [CD0-0454]
2x - Gas nozzle for cabin [CD0-0410]
2x - Nozzle fixing bracket for cabin [XMC-CD00059]
5x - 8 mm 90° connection [CD0-0391-A02]
1x - 8 mm T-connection [CD0-0412]
2x - 8 mm Y-connection [CD0-0414]
6x - 8 mm straight connection [CD0-0416]
2x - Mounting brackets with clamps [CD0-0408]
1x - Control unit [CD0-0380-A01]
1x - Control unit wiring [CD0-0436]
1x - M5 Y wiring connector [CD0-0435]
1x - Activation button with 0.5 m M5 connector [CD0-0432-A01]
1x - Activation button with 1.5 m M5 connector [CD0-0432-A02]
1x - M5 extension cable [CD0-0431]
2x - Activation button protection [CD0-0441]
