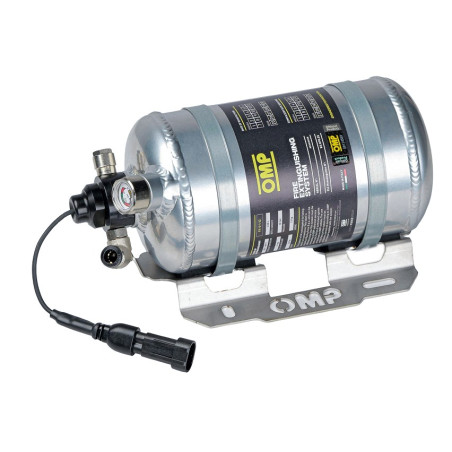

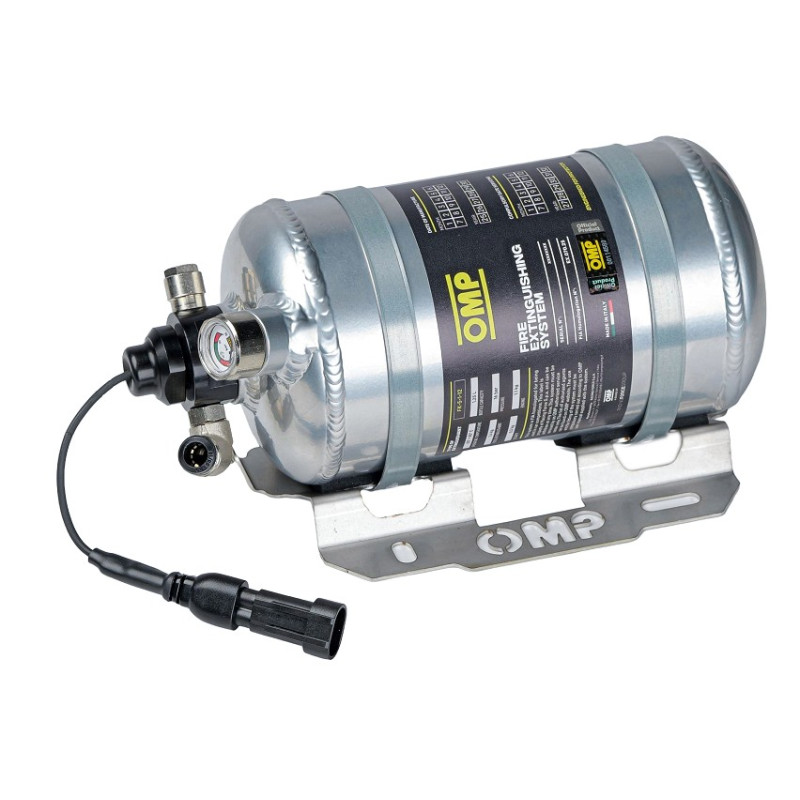

OMP CEFAL6 FORMULA AUTOMATIC ELECTRICAL EXTINGUISHING SYSTEM

Electrically activated fire suppression system designed for single-seater cars that require a compact, high-performance fire suppression system.
The CEFAL6 system uses FK-5-1-12 clean agent.
The fluid is stored in a lightweight 100 mm aluminium bottle and delivers fire extinguishing performance thanks to a nozzle and precision tube design that maximises performance.
Designed for installations where space and weight are critical. Includes control unit, mounting brackets, clamps, tubes and connections.

• Suitable for single-seater cars.
• Suitable for electric and hybrid cars.
• 1.4 kg FK-5-1-12 fire extinguisher.
• Electric activation.
• 100 mm aluminium bottle.
• Approved by FIA Tech. List 16.


DIMENSIONS AND WEIGHT:

- Diameter: 100 mm

- Cylinder length: 197 mm.

- Total length: 230 mm.

- Total weight: 2.05 kg ±5%.

SYSTEM PARTS:

- 2 x 8 mm aluminium tubes [CD0-0323-A01]
- 1 x 6 mm aluminium tube [CD0-0323-B01]
- 2 x 10 mm sleeves [CD0-0324-A01]
- 1 x 8 mm sleeve [CD0-0324-A03]
- 6 x atomising nozzles: 5 for the motor and 1 for the cabin [CD0-0393-A01]
- 3 x 8 mm T-connectors [CD0-0392-A02]
- 2 x 8 mm 90° connections [CD0-0391-A02]
- 1 x 6 mm 90° connection [CD0-0391-A03]
- 1 x 6-8 mm pipe reducer [CD0-0399]
- 2 x 8 mm T-connectors [CD0-0390-B01]
- 1 x control unit [CD0-0398]
- 1 x control unit wiring [XMC-398-CAV]
- 1 x electric valve wiring [XMC-363-E-CAV]
- 1 activation button [CD0-0432-A01]
- 1 activation button cover [CD0-0441]
- 1 bracket and clamps [CD0-0563]
- 2 stickers [XMC-855]
