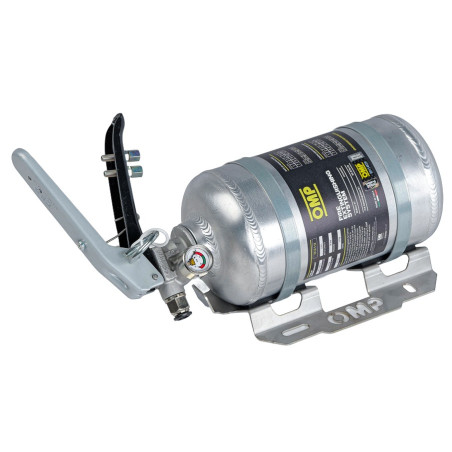

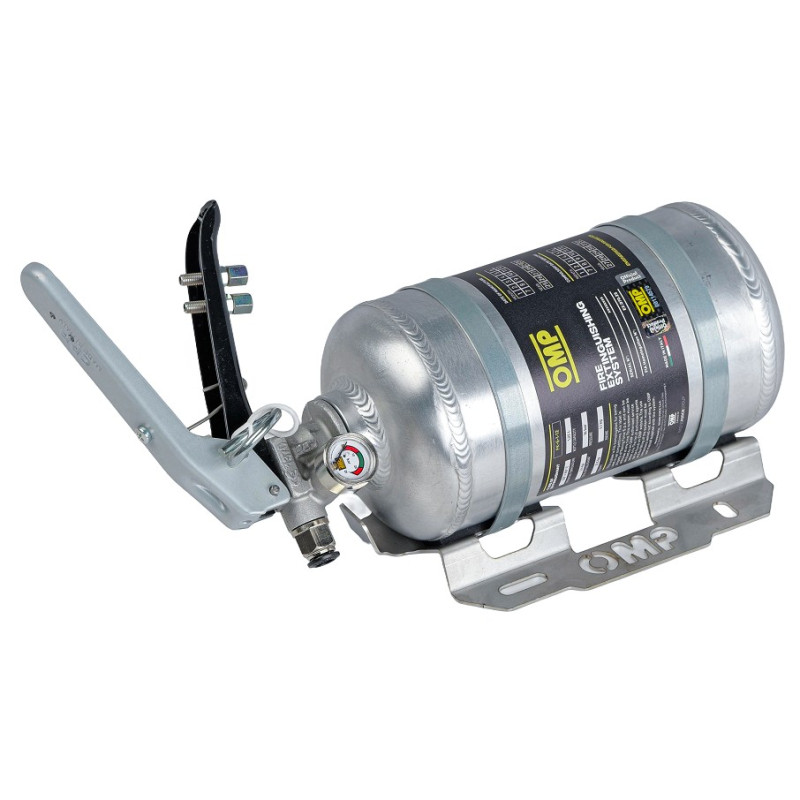

OMP CMFAL6 FORMULA AUTOMATIC MECHANICAL EXTINGUISHING SYSTEM

Manually activated fire suppression system designed for formula cars and prototypes requiring a compact, high-performance fire suppression system.
The CMFAL6 system uses FK-5-1-12 clean agent.
The fluid is stored in a lightweight 100 mm aluminium bottle and delivers fire extinguishing performance thanks to a nozzle and tube system precisely designed to maximise performance. Aluminium mechanical valve.
Designed for installations where space and weight are critical.
Mounting brackets, clamps, pipes and connections are included.


• Suitable for single-seater cars.
• Suitable for electric and hybrid cars.
• 1.4 kg FK-5-1-12 extinguisher.
• Manual activation.
• Aluminium mechanical valve.

DIMENSIONS AND WEIGHT:

- Diameter: 100 mm

- Bottle length: 196 mm.

- Total length: 288 mm.

- Total weight: 2.20 kg ±5%.


SYSTEM PARTS:

- 2x Aluminium piping 8mm [CD0-0323-A01]
- 1x Aluminium piping 6mm [CD0-0323-B01]
- 2x Sheath 10mm [CD0-0324-A01]
- 1x 8mm sheath [CD0-0324-A03]
- 6x Atomiser nozzles - 5 for engine and 1 for cockpit [CD0-0393-A01]
- 3x 8mm T-connections [CD0-0392-A02]
- 2x 8mm 90° connection [CD0-0391-A02]
- 1x 6mm 90° connection [CD0-0391-A03]
- 1x Pipe reduction 6-8mm [CD0-0399]
- 2x 8mm T connection [CD0-0390-B01]
- 1x Pull handle cable 3.795m [CD0-0335]
- 1x Pull handle cable 2m [CD0-0336]
- 1x Bracket and clamps [CD0-0563]
- 2x Sticker [XMC-855]
