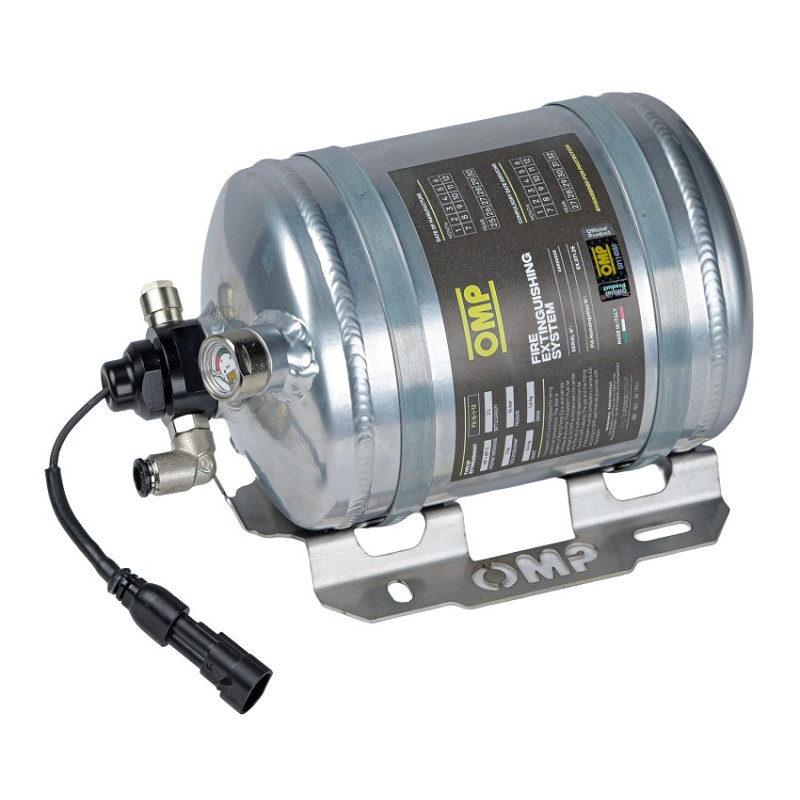

OMP CESAL6 2KG AUTOMATIC ELECTRICAL EXTINGUISHER

Electrically activated fire extinguishing system designed for passenger cars that require a compact, high-performance extinguishing system. The CESAL6 2KG system uses 2 kg of FK-5-1-12 clean agent. The fluid is stored in a lightweight 130 mm aluminium cylinder and delivers fire extinguishing performance thanks to a nozzle and tube system precisely designed to maximise performance.
Includes control unit, mounting brackets, clamps, tubes and connections.


• Suitable for passenger cars.
• Suitable for electric and hybrid cars.
• 2 kg FK-5-1-12 fire extinguisher.
• Electric activation.
• 130 mm aluminium bottle.
• Approved by FIA Tech. List 16.

DIMENSIONS AND WEIGHT:

- Diameter: 130 mm

- Bottle length: 197 mm.

- Total length: 230 mm.

- Total weight: 2.85 kg ±5%.


SYSTEM PARTS:

- 2x 8 mm aluminium tubes [CD0-0323-A01]
- 1x 6 mm aluminium tube [CD0-0323-B01]
- 2x 10 mm sleeves [CD0-0324-A01]
- 1x 8 mm sleeve [CD0-0324-A03]
- 7x atomising nozzles: 5 for the motor and 2 for the cabin [CD0-0393-A01]
- 3x 8 mm T-connectors [CD0-0392-A02]
- 1x 6 mm T-connector [CD0-0392-A03]
- 2x 8 mm 90° connections [CD0-0391-A02]
- 1x 6 mm 90° connection [CD0-0391-A03]
- 1x 6-8 mm pipe reducer [CD0-0399]
- 2x 8 mm T-connectors [CD0-0390-B01]
- 1x control unit [CD0-0398]
- 1x control unit wiring [XMC-398-CAV]
- 1x electric valve wiring [XMC-363-E-CAV]
- 1x activation button [CD0-0432-A01]
- 1x activation button cover [CD0-0441]
- 1x bracket and clamps [CD0-0562]
- 2x stickers [XMC-855]
