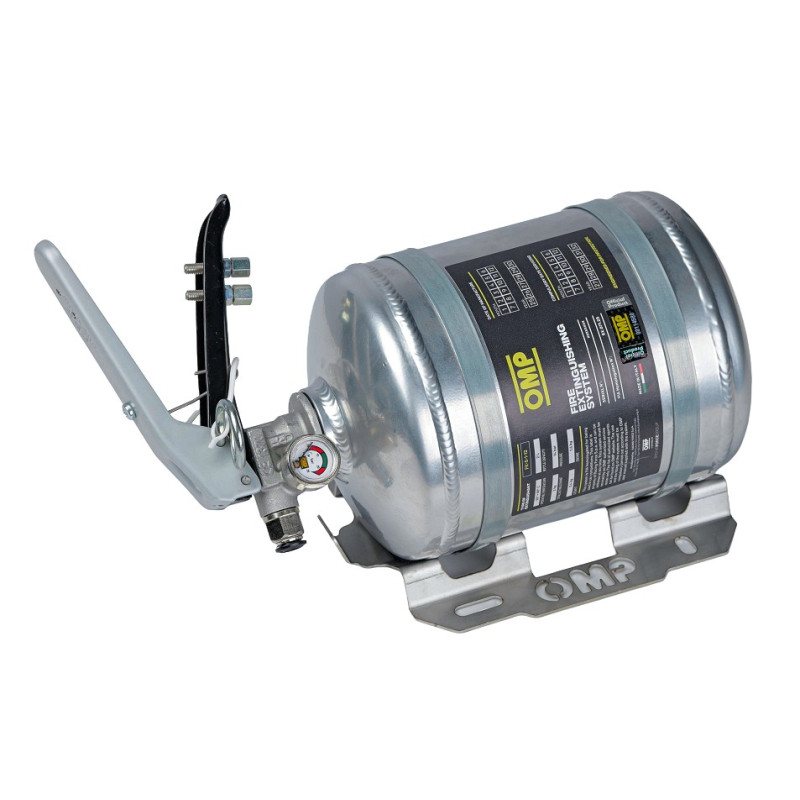

OMP CMSAL6 2KG AUTOMATIC MECHANICAL EXTINGUISHER

Manually activated fire suppression system designed for passenger cars requiring a compact, high-performance fire suppression system. The CMSAL6 2KG system uses 2 kg of FK-5-1-12 clean agent. The fluid is stored in a lightweight 130 mm aluminium bottle and delivers fire extinguishing performance thanks to a nozzle and tube system precisely designed to maximise performance. Aluminium mechanical valve.
Mounting brackets, clamps, pipes and connections are included.


• Suitable for passenger cars.
• Suitable for electric and hybrid cars.
• 2 kg FK-5-1-12 fire extinguisher.
• Mechanical activation.
• 130 mm aluminium bottle.
• Approved by FIA Tech. List 16.


DIMENSIONS AND WEIGHT:

- Diameter: 130 mm

- Cylinder length: 199 mm.

- Total length: 292 mm.

- Total weight: 2.95 kg ±5%.

SYSTEM PARTS:

- 2x 8 mm aluminium tubes [CD0-0323-A01]
- 1x 6 mm aluminium tube [CD0-0323-B01]
- 2x 10 mm sleeves [CD0-0324-A01]
- 1x 8 mm sleeve [CD0-0324-A03]
- 7x atomiser nozzles: 5 for the motor and 2 for the cabin [CD0-0393-A01]
- 3x 8 mm T-connectors [CD0-0392-A02]
- 1x 6 mm T-connection [CD0-0392-A03]
- 2x 8 mm 90° connections [CD0-0391-A02]
- 1x 6 mm 90° connection [CD0-0391-A03]
- 1x 6-8 mm tube reducer [CD0-0399]
- 2x 8 mm T-connections [CD0-0390-B01]
- 1x bracket and clamps [CD0-0562]
- 1x 3.795 m pull handle cable [CD0-0335]
- 1x 2 m pull handle cable [CD0-0336]
- 2x stickers [XMC-855]
