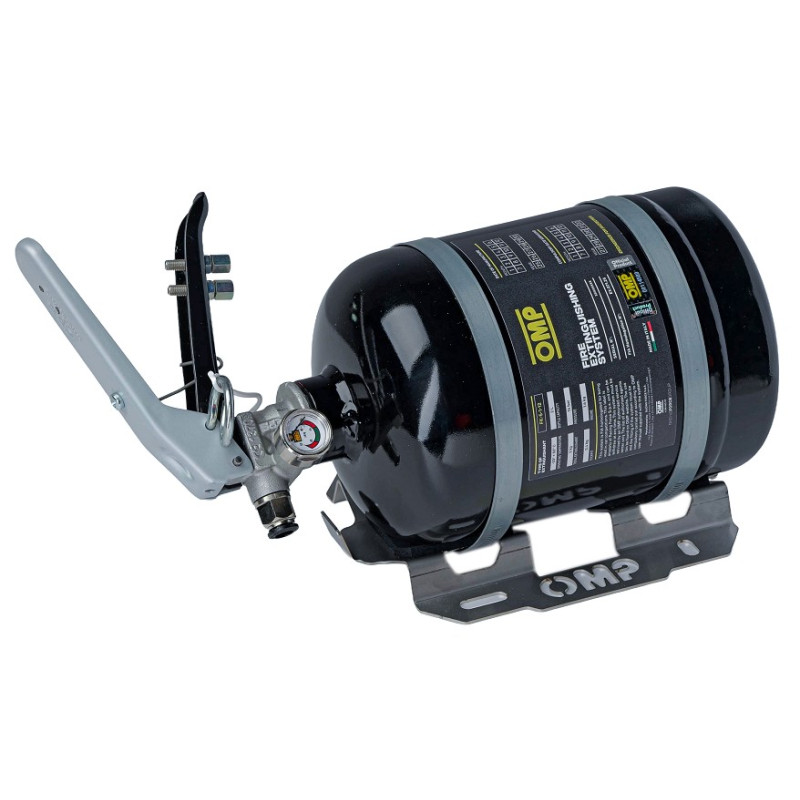

OMP CMSST6 2KG AUTOMATIC MECHANICAL EXTINGUISHER

Manually activated fire extinguishing system designed for passenger cars requiring a durable, high-performance fire suppression system.

The CMSST6 2KG system uses 2 kg of FK-5-1-12 clean agent.

The fluid, stored in a 130 mm steel cylinder, provides high extinguishing performance through a nozzle and tubing precisely designed to maximize efficiency.
Aluminum mechanical valve.
Includes mounting brackets, clamps, tubing, and fittings.

• Suitable for passenger cars
• Suitable for electric and hybrid vehicles
• 2 kg FK-5-1-12 fire extinguisher
• Manually activated
• 130 mm steel cylinder
• Approved according to FIA Technical List 16

DIMENSIONS AND WEIGHT:

- Diameter: 130 mm

- Cylinder length: 210 mm

- Total length: 303 mm

- Total weight: 3.55 kg ±5%.


SYSTEM PARTS:

- 2x 8 mm aluminium tubes [CD0-0323-A01]
- 1x 6 mm aluminium tube [CD0-0323-B01]
- 2x 10 mm sleeves [CD0-0324-A01]
- 1x 8 mm sleeve [CD0-0324-A03]
- 7x atomiser nozzles: 5 for the motor and 2 for the cabin [CD0-0393-A01]
- 3x 8 mm T-connectors [CD0-0392-A02]
- 1x 6 mm T-connection [CD0-0392-A03]
- 2x 8 mm 90° connections [CD0-0391-A02]
- 1x 6 mm 90° connection [CD0-0391-A03]
- 1x 6-8 mm tube reducer [CD0-0399]
- 2x 8 mm T-connections [CD0-0390-B01]
- 1x bracket and clamps [CD0-0562]
- 1x 3.795 m pull handle cable [CD0-0335]
- 1x 2 m pull handle cable [CD0-0336]
- 2x stickers [XMC-855]
