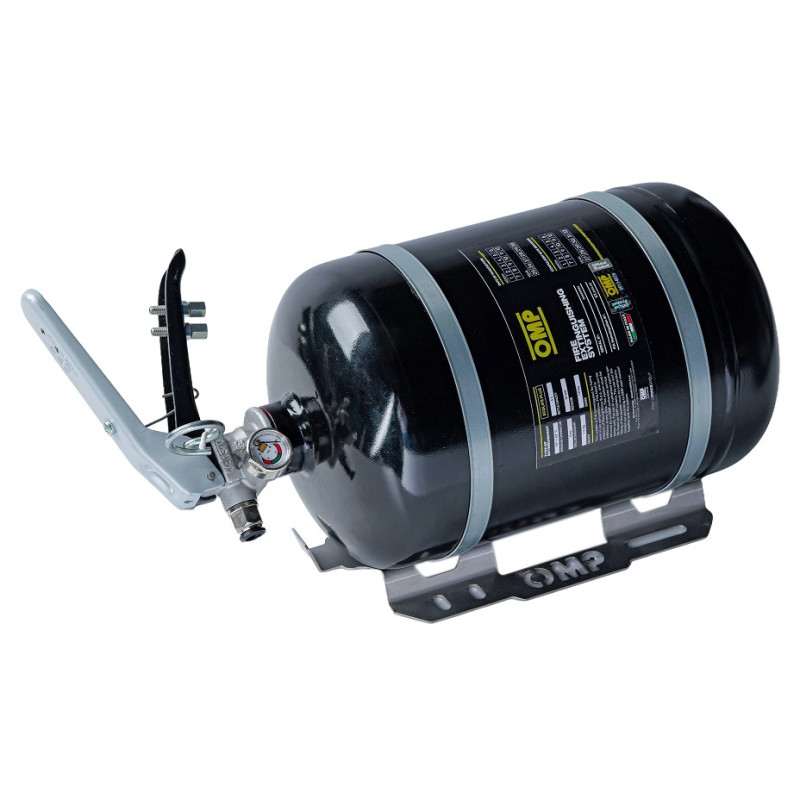

OMP CMSST7 AUTOMATIC MECHANICAL EXTINGUISHING SYSTEM

Electrically activated fire suppression system designed for passenger cars that require a durable and affordable fire suppression system.
The CESST7 system uses 3 kg of EcoLifePlus liquid stored in a 160 mm steel bottle and offers fire suppression performance thanks to a nozzle and precision tube design that maximizes performance.
Includes control unit, mounting brackets, clamps, tubes, and connections.


• Suitable for rally cars
• Suitable for passenger cars
• 3 kg of EcolifePlus foam.
• Electrically activated
• 160 mm steel bottle
• Approved according to FIA Technical List 16


DIMENSIONS AND WEIGHT:

- Diameter: 160 mm

- Bottle length: 270 mm.

- Total length: 313 mm.

- Total weight: 5.45 kg ±5%.


SYSTEM PARTS:

- 2 x 8 mm aluminum tubes [CD0-0323-A01]
- 2 x 10 mm sleeves [CD0-0324-A01]
- 5 atomizing nozzles: 3 for the engine and 2 for the cabin [CD0-0393-A01]
- 3x 8 mm T-connections [CD0-0392-A02]
- 2x 8 mm 90° connections [CD0-0391-A02]
- 1x 8 mm T-connection [CD0-0390-B01]
- 1x bracket and clamps [CD0-0600]
- 1x control unit [CD0-0398]
- 1x control unit wiring [XMC-398-CAV]
- 1x electric valve wiring [XMC-363-E-CAV]
- 1x activation button [CD0-0432-A01]
- 1x activation button protection [CD0-0441]
- 2x sticker [XMC-855]
